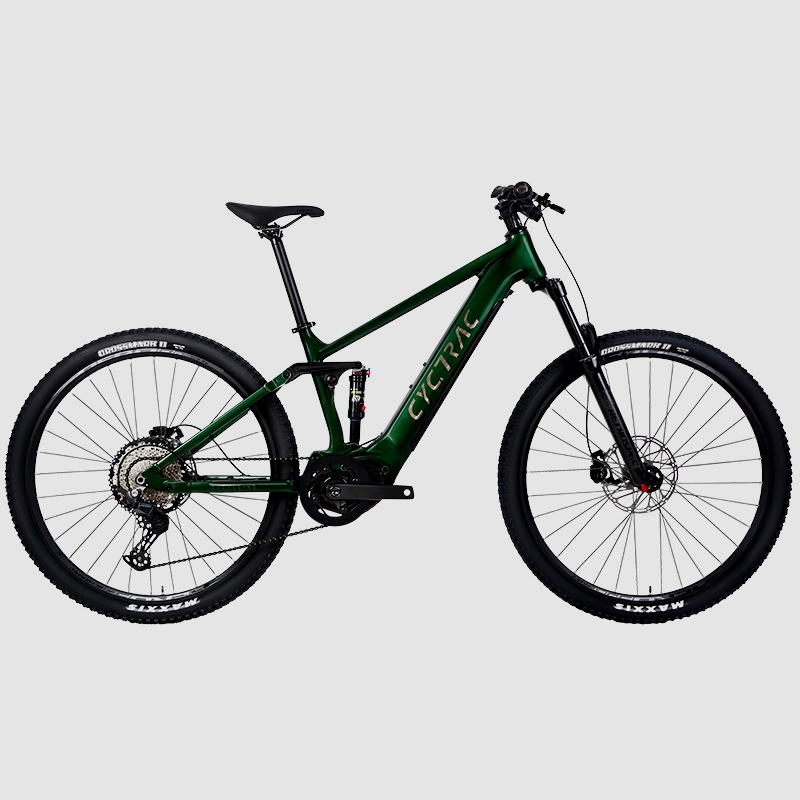

| Model: |
EM-6 |
| Color: |
MatteBlack / DarkGreen / DarkBlue / DarkRed |
| Size: |
16″/18″ |
| Frame: |
CYCTRAC, EM6, AL7005,Flat weld,Inner cables,Thru-axle12*148 Boost, 140mm
Travel, DNM rear shox 200*55 |
| Fork: |
RS, MgAl alloy, Air, Manual, 150,Thru-axle 15*110 |
| Handlebar: |
RS, Alu alloy,Matte,Handlebar 31.8 ×720 |
| Seatpost: |
Stem 80mm,Seat post 31.6 ×350mm,Clamps 34.9mm |
| Derailleur: |
SHIMANO DEORE/M6100-12S |
| Shifters: |
SHIMANO DEORE/M6100-12S |
| FD: |
None |
| RD: |
SHIMANO DEORE/M6100-12S |
| Crankset: |
Matching with Mid Motor, 38T |
| Cassette: |
SUNSHINE-12S, 11-50T |
| Chain: |
SUMC-12s |
| Brake: |
RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, 203/203mm |
| tor System: |
Bafang Mid, M510, 36V250W (48V250W) |
Bafang Mid, M560, 48V500W |
| Battery: |
amsung 21700 Li-ion,720Wh,36V20A(48V15 |
| ASamsung 21700 Li-ion, 720Wh, 48V15A |
|
| HMI: |
Bafang-C030, LCD digital (Built in Top tube) |
afang-C030, LCD digital (Built in Top tub |
| Wheels: |
RS, Alu alloy with Double-wall&Rivets, W25× H21mm |
| HubA: |
lu alloy,4-sealed Bearings,Slotted,32Holes,Thru-axle F15× 110_R12× 148mm Boos |
| Rim: |
RS, Alu alloy with Double-wall&Rivets, W25× H21mm |
| Tire: |
MAXXIS, 29/27.5 ×2.25″ |
| Grips: |
Circular 22.2 × 120mm, PU leather&locking Ring |
| EXW Price(USD) |
| Config: |
Bafang Mid, M510, 36V250W (48V250W |
) Bafang Mid, M560, 48V500W |
| Bike weight: |
24.5kg |
24.9kg |
|
|
|
|
|
|
|
|
|
